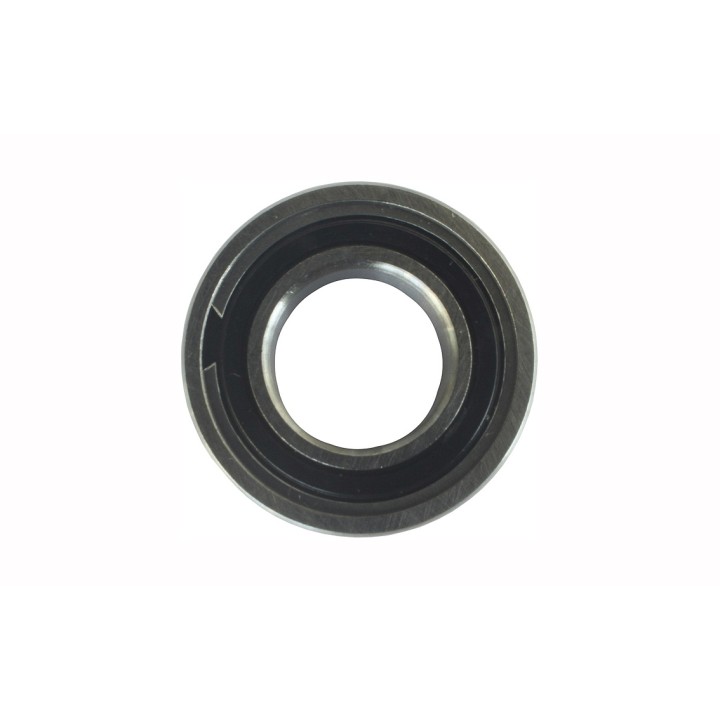

Guolis 61901 SRS ABEC 5

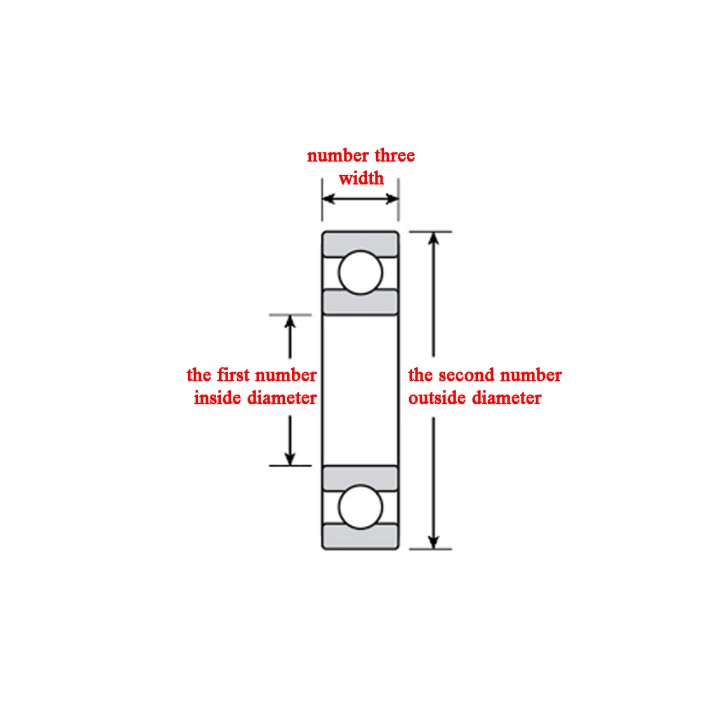

Enduro 61901 LLU/LLB CN - ABEC-5 Radial Bearing (CN clearance) - 12mm x 24mm x 6mm -

Radial bearing generally used as a hub bearing for some quick-release hub designs and can be used as a pivot bearing though the MAX-type version of this bearing is better suited for the suspension use. This ABEC-5 bearing features deep-groove design races, with Grade 10 balls, dual-lip, full-contact LLU seals facing outwards to withstand daily abuse of use and the elements, and lighter-contact LLB seals facing inwards to contain the 90% fill with high pressure water proof grease. CN clearance specification is best for looser press-fit bearing bores.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 328lbf / 1.46kN
Weight - 20.9g
